VGG Architecture: 7 Key Concepts of Deep Learning

In the field of deep learning and computer vision, the VGG16 architecture is one of the most influential convolutional neural network (CNN) models ever developed. Known for its simple yet powerful design, VGG16 has played a significant role in advancing image classification, feature extraction, transfer learning, and other computer vision applications.

Developed by the Visual Geometry Group (VGG) at the University of Oxford, VGG16 was introduced as part of the VGG network family and gained widespread recognition after its strong performance in the ImageNet Large Scale Visual Recognition Challenge.

The model is called VGG16 because it contains 16 learnable layers, including 13 convolutional layers and 3 fully connected layers. Its architecture primarily uses small 3×3 convolutional filters, allowing the network to learn increasingly complex visual features as data moves through deeper layers.

In this guide, we will explain the VGG16 architecture, its layers, working principles, key features, applications, advantages, limitations, and role in modern deep learning.

What Is VGG16 Architecture?

VGG16 architecture is a deep convolutional neural network designed primarily for image classification and visual recognition tasks. It was proposed by researchers from the Visual Geometry Group at the University of Oxford.

The architecture follows a straightforward design principle: it uses multiple convolutional layers with small 3×3 filters, followed by max-pooling layers that progressively reduce the spatial dimensions of feature maps.

The original VGG16 model accepts an RGB image with an input size of 224×224×3 pixels and was trained on the ImageNet dataset, which contains 1,000 object categories.

Key characteristics of VGG16 include:

• 16 learnable layers
• 13 convolutional layers
• 3 fully connected layers
• 3×3 convolution filters
• ReLU activation functions
• 2×2 max-pooling layers
• 224×224×3 input image size
• 1,000-class ImageNet output
• Approximately 138 million trainable parameters

The simplicity of VGG16 makes it relatively easy to understand compared with many more complex CNN architectures. However, its large number of parameters also makes it computationally expensive compared with newer, more efficient models.

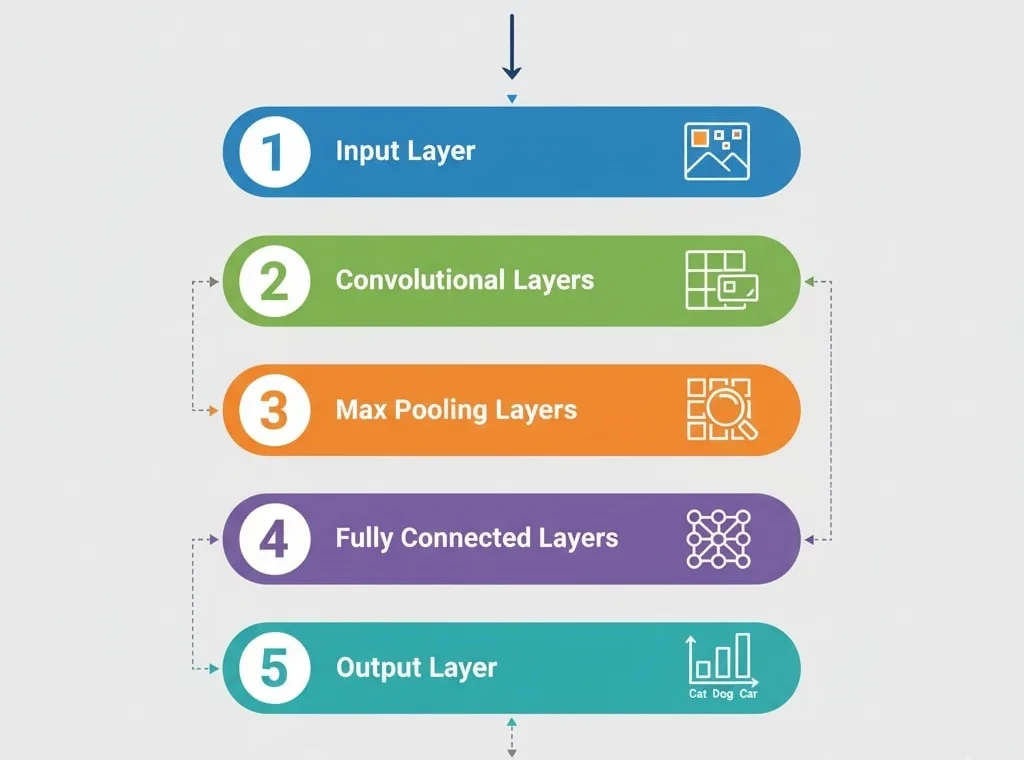

VGG16 Architecture: Layer-by-Layer Explanation

The VGG16 model processes an input image through a sequence of convolutional, activation, pooling, and fully connected layers. Each stage extracts increasingly sophisticated features from the image.

1. Input Layer

The VGG16 network takes an RGB image with a standard input size of:

224 × 224 × 3

Here:

• 224 × 224 represents the image’s height and width.
• 3 represents the RGB color channels.

Before being passed into the network, the input image is typically preprocessed according to the requirements of the model.

2. Convolutional Layers

VGG16 contains 13 convolutional layers. These layers use small 3×3 filters with a stride of 1 and generally use padding to preserve spatial dimensions.

The convolutional layers progressively learn different types of visual patterns.

For example:

• Early layers detect edges, lines, and simple textures.
• Middle layers identify shapes, curves, and patterns.
• Deeper layers learn complex structures and object-specific features.

Each convolutional layer is followed by a Rectified Linear Unit (ReLU) activation function, which introduces non-linearity into the network and helps the model learn complex relationships.

Read More- Exploring VGG Architecture: How Deep Layers Revolutionize Image Recognition

3. Max-Pooling Layers

VGG16 uses five max-pooling layers throughout its convolutional blocks.

Each max-pooling operation generally uses:

• A 2×2 pooling window
• A stride of 2

The purpose of max pooling is to reduce the spatial dimensions of feature maps while retaining the most important features.

This helps:

• Reduce computational requirements
• Control the size of feature maps
• Improve translation invariance
• Preserve the strongest detected features

4. Fully Connected Layers

After the convolutional and pooling blocks, VGG16 uses three fully connected layers.

The first two fully connected layers contain 4,096 neurons each and use ReLU activation.

These layers combine the high-level features extracted by the convolutional layers and prepare them for final classification.

5. Output Layer

The final layer contains 1,000 neurons, corresponding to the 1,000 ImageNet object categories used during the original training of VGG16.

A softmax activation function converts the output values into probabilities, allowing the model to estimate how likely an input image belongs to each class.

For example, if an image contains a dog, the model may assign a high probability to a dog-related category compared with unrelated categories.

VGG16 Architecture Table

The following table provides a simplified overview of the major stages in the VGG16 network.

Stage	Layers	Main Operation	Output Size
Input	Input	RGB Image	224 × 224 × 3
Block 1	2 Conv + Max Pool	Low-level feature extraction	112 × 112 × 64
Block 2	2 Conv + Max Pool	Basic pattern extraction	56 × 56 × 128
Block 3	3 Conv + Max Pool	Complex feature extraction	28 × 28 × 256
Block 4	3 Conv + Max Pool	High-level feature learning	14 × 14 × 512
Block 5	3 Conv + Max Pool	Advanced feature extraction	7 × 7 × 512
Classifier	3 Fully Connected Layers	Classification	1,000 classes

This block-based structure allows VGG16 to gradually transform raw pixels into high-level visual representations.

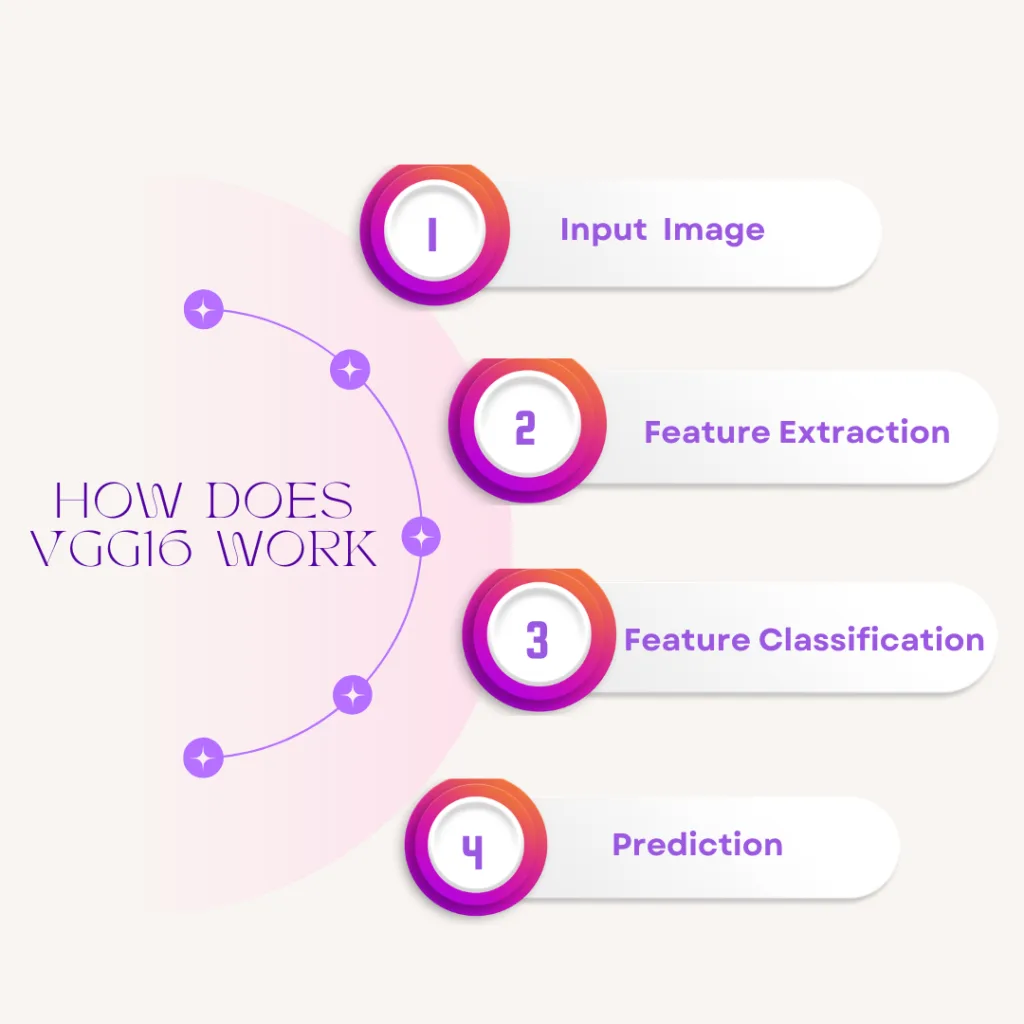

How Does VGG16 Work?

The working process of VGG16 can be summarized in four main stages:

• Input Image

• Feature Extraction

• Feature Classification
• Prediction

First, an input image is provided to the network. The convolutional layers then scan the image using filters to detect visual patterns.

As the image passes through deeper layers, the network learns increasingly complex features. Max-pooling layers reduce the spatial dimensions of the feature maps, making the representation more compact.

The extracted features are then passed to fully connected layers, which act as a classifier. Finally, the softmax output layer generates probability scores for the available classes.

This hierarchical feature-learning process is one of the key reasons why VGG16 became an important model in computer vision.

Principles Behind VGG16 Architecture

Several important deep learning principles contribute to the effectiveness of VGG16.

1. Simplicity

One of the most notable characteristics of VGG16 is its simple and consistent architecture. Instead of relying on a wide variety of convolutional filter sizes, the model primarily uses 3×3 convolution filters.

This makes the architecture easier to understand and reproduce.

2. Deep Representation Learning

The depth of VGG16 enables the network to learn hierarchical representations.

The earlier layers learn simple visual features, while deeper layers combine these features to recognize increasingly complex structures.

This hierarchical approach allows the model to transform raw image pixels into meaningful visual representations.

3. Small Convolutional Filters

VGG16 relies heavily on 3×3 convolutional filters.

Using multiple small filters instead of a single larger filter can allow the network to learn complex representations through a sequence of nonlinear transformations while maintaining a relatively consistent architectural design.

4. Transfer Learning

One of the most valuable uses of VGG16 today is transfer learning.

A VGG16 model pre-trained on ImageNet can be adapted to a new computer vision problem. Instead of training the entire network from scratch, developers can reuse the learned feature representations and fine-tune the model using a domain-specific dataset.

This can be especially useful when the available training dataset is relatively small.

VGG16 vs. VGG19: Key Differences

VGG16 and VGG19 belong to the same VGG network family, but they differ mainly in depth.

Feature	VGG16	VGG19
Learnable Layers	16	19
Convolutional Layers	13	16
Fully Connected Layers	3	3
Model Complexity	Lower	Higher
Parameters	Approximately 138 million	Approximately 144 million
Computational Cost	High	Higher
Common Use	Classification and transfer learning	Classification and feature extraction

Read More – Transfer Learning

Both models can be useful for computer vision tasks, but VGG16 is often preferred when a slightly simpler VGG architecture is sufficient.

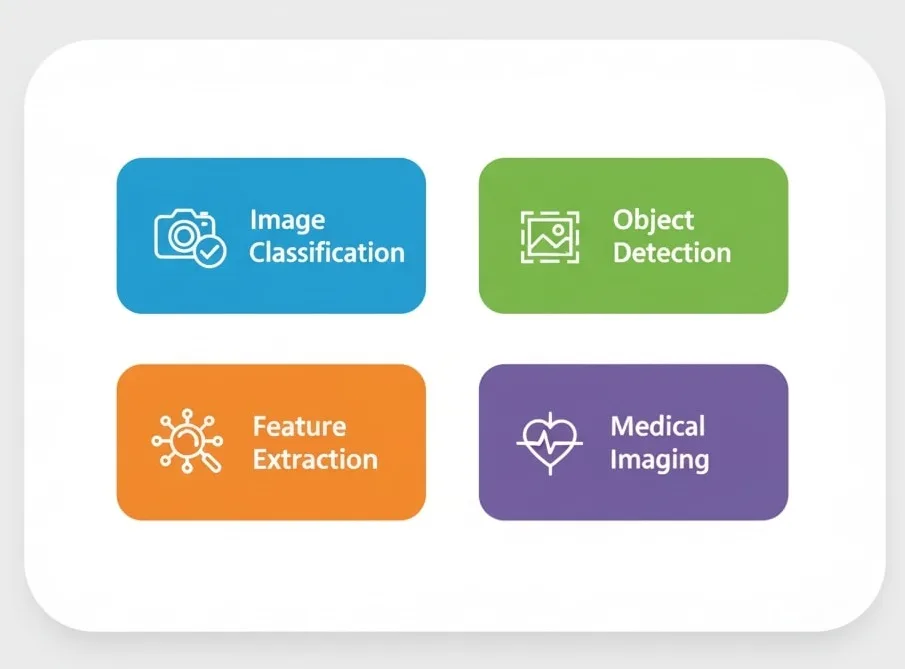

Applications of VGG16

The versatility of the VGG16 model has made it useful across a variety of computer vision applications.

1. Image Classification

VGG16 was originally designed for image classification. It can identify objects and categories within images by learning hierarchical visual features.

Although newer architectures often outperform VGG16, it remains a popular model for learning, experimentation, and transfer learning.

2. Object Detection

VGG16 can serve as a backbone network for object detection systems.

In this setup, the convolutional layers act as a feature extractor, while additional detection components identify and localize objects within an image.

3. Feature Extraction

The intermediate layers of VGG16 can generate useful feature representations from images.

These extracted features can be used in applications such as:

• Image retrieval
• Image similarity analysis
• Image captioning
• Visual recognition
• Semantic segmentation

4. Medical Imaging

VGG16 has also been explored in medical imaging research for tasks such as disease classification, tumor detection, and medical image analysis.

However, performance in real-world healthcare applications depends heavily on dataset quality, validation, clinical evaluation, and appropriate model design.

5. Transfer Learning

VGG16 is widely used as a starting point for transfer learning projects.

Developers can use pre-trained VGG16 weights and adapt the model to specialized datasets, potentially reducing training time and data requirements.

Advantages of VGG16

VGG16 continues to be relevant because of several important advantages.

Simple Architecture

The consistent use of convolutional and pooling layers makes VGG16 relatively easy to understand.

Strong Feature Extraction

The deep architecture enables the model to learn rich visual representations.

Effective for Transfer Learning

Pre-trained VGG16 models can be adapted to various computer vision tasks.

Well-Studied Model

Because VGG16 has been extensively researched, it is widely supported by deep learning frameworks and educational resources.

Useful Benchmark

VGG16 is frequently used as a baseline for comparing different computer vision approaches.

Limitations of VGG16

Despite its historical importance, VGG16 has several limitations.

High Number of Parameters

VGG16 contains approximately 138 million parameters, making it significantly larger than many modern CNN architectures.

High Computational Cost

The model requires considerable computational resources for training and inference compared with newer lightweight architectures.

High Memory Usage

Its large fully connected layers contribute significantly to memory requirements.

Less Efficient Than Modern Architectures

More recent architectures often provide better accuracy-to-computation trade-offs and more efficient designs.

Not Ideal for Edge Devices

Due to its size and computational requirements, VGG16 may not be the best choice for resource-constrained devices.

VGG16 Architecture: Key Takeaways

The VGG16 architecture remains an important milestone in the development of deep learning and computer vision.

Its key characteristics include:

• 16 learnable layers
• 13 convolutional layers
• 3 fully connected layers
• 3×3 convolution filters
• Five max-pooling layers
• ReLU activation functions
• 224×224×3 input size
• Originally trained on ImageNet
• Approximately 138 million parameters

While newer CNN architectures have improved efficiency and performance, VGG16 continues to be valuable for understanding CNN fundamentals, feature extraction, transfer learning, and deep visual representation learning.

Conclusion –

The VGG16 architecture remains one of the most influential convolutional neural network (CNN) models in the history of deep learning and computer vision. With its 16-layer architecture, 3×3 convolutional filters, hierarchical feature extraction, and strong transfer learning capabilities, VGG16 provides a clear foundation for understanding how deep neural networks process and classify images.

Although modern CNN architectures are often more efficient and computationally optimized, VGG16 continues to be valuable for image classification, feature extraction, transfer learning, and computer vision research. Its simple and structured design also makes it an excellent model for students, developers, and AI professionals who want to understand the fundamentals of deep learning.

By understanding VGG16 architecture, its layers, working principles, advantages, limitations, and applications, you can build a strong foundation for exploring more advanced deep learning models and modern computer vision technologies.
